The LQ Integrated Organic Waste Gas Treatment Equipment System, produced by a reliable Chinese manufacturer and supplier, offers high-quality treatment of organic waste gases at a competitive price, making it an ideal choice for sustainable industrial operations.
The LQ Integrated Organic Waste Gas Treatment Equipment System, manufactured by a renowned Chinese manufacturer and supplier, offers a comprehensive solution for the treatment of organic waste gases. This system combines state-of-the-art technologies to ensure efficient and effective removal of harmful pollutants, protecting the environment and promoting sustainable development. With its high-quality components and precision engineering, the system guarantees reliable performance and long-term durability. Additionally, its competitive price point makes it an affordable option for businesses seeking cost-effective waste gas treatment solutions.

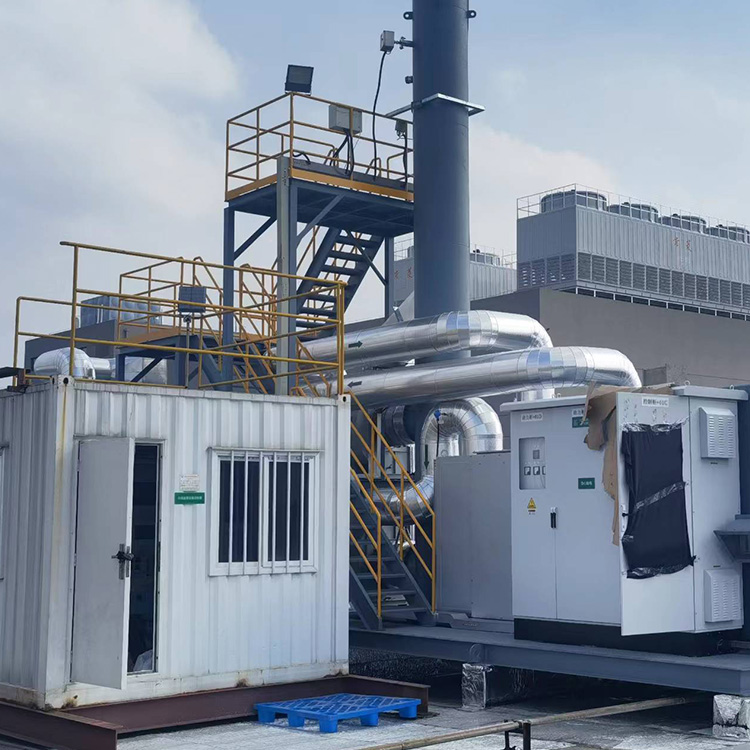

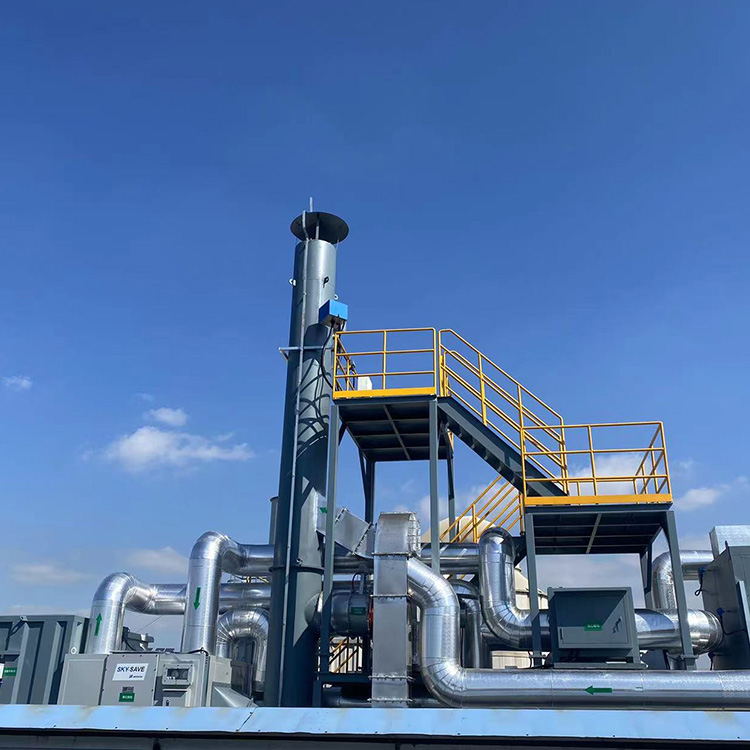

The Integrated Organic Waste Gas Treatment Equipment System is a system that integrates a filter,zeolite wheel,adsorption fan,desorption fan,heat exchanger,catalytic combustion furnace,and other equipment into one.
The zeolite concentration wheel operates on a cycle of "adsorption-desorption-cooling"in three zones.First,the high-volume adfilter box.The VOCs are then adsorbed by the zeolite molecular sieve wheel,and the gas from the zeolite wheel can be directly discharged.
The sieve that absorbs a large amount of VOCs enters the high-temperature desorption zone,where a low-volume stream of hot air (with a temperature of about 200-220°C)removes the VOCs from the zeolite wheel,resulting in a high-concentration waste gas with a concentration multiplication factor typically ranging from 3 to 20.
After adsorption,the desorption fansends the waste gas to the back-end CO/RCO system or TO/RTO system for combustion treatment.The Integrated Organic Waste Gas Treatment Equipment System is cooled in the cooling zone.The air passing through the cooling zone is heated and used as regenerating air,achieving energy-saving effects.
| Application industries | Multiple industries such as coating,pharmaceuticals,chemical engineering,and coating |
| Concentration Range | 100-500 MG/M³(2-12%LEL) |
| Processing Air Volume | 6000-50000 M³/H |
1.High Purification Efficiency:Theoretical removal efficiency of the wheel adsorption method is up to 98.5%(excluding special components).
2.High Desorption Efficiency:Organic substances with boiling points below 220℃ can be desorbed.
3.Small Footprint:The system has a smaller footprint compared to other complete sets of adsorption equipment.
4.Low Fire Risk:Compared with activated carbon adsorption,the zeolite wheel has no flammability,and there is no risk of ignition during the de- sorption process.
5.Fast Adsorption and Desorption:The short adsorption time,high satu- ration point,high desorption efficiency,and short cycle time make the system work quickly
| Specification |
Handling air capacity (Nm³/h) |
Treatment concentration (mg/Nm³) |
Equipment area size (m) |
Installed powe (Kw) |
| LQ-1000 | 10000 | 100-500 | 13×3 | 100 |
| LQ-2000 | 20000 | 100-500 | 13×3 | 110 |
| LQ-3000 | 30000 | 100-500 | 14×3 | 40 |
| LQ-4000 | 40000 | 100-500 | 15×3.5 | 150 |
| L0-500 | 50000 | 100-500 | 15×3.5 | 90 |
Note:1.The above table parameters are based on the components and concentrations of con-ventional spray waste gas,and the actual selection needs to be confirmed with our company. 2.The heating method for catalytic combustion in the above table is electric heating,but the heating method for catalytic combustion can be selected as electric heating or fuel heating in engineering applications.
